7-MHz Loop Antenna

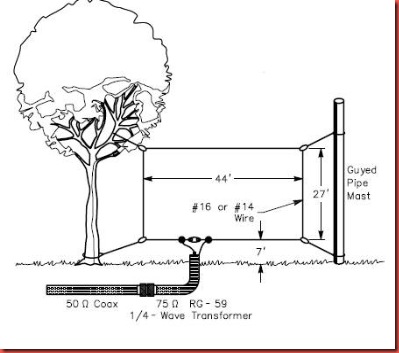

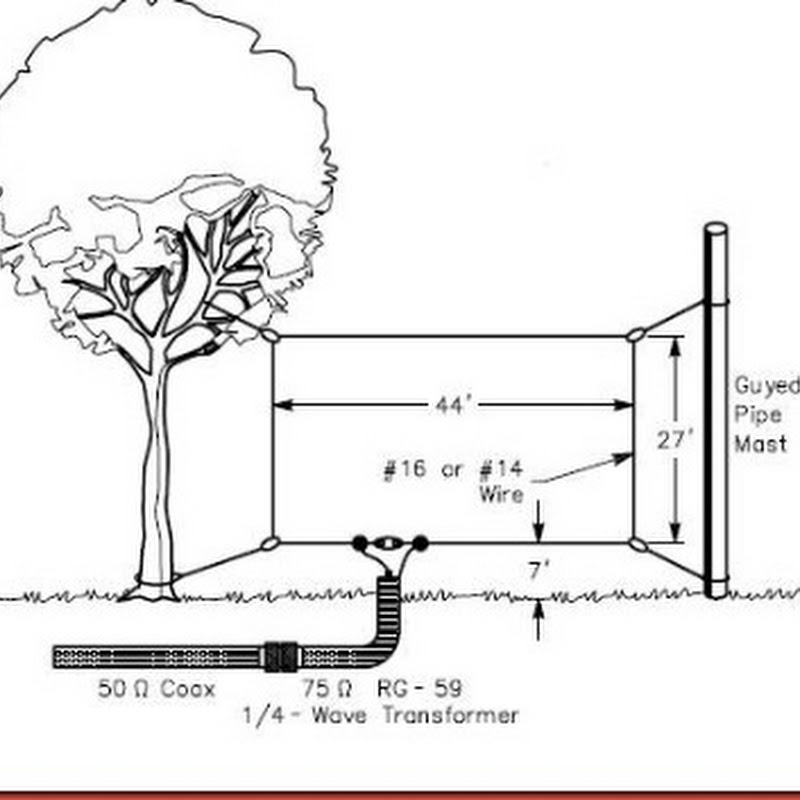

The loop can be fed in the center of one of the vertical sides if vertical polarization is desired. For horizontal polarization, it is necessary to feed either of the horizontal sides at the center. Optimum directivity occurs at right angles to the plane of the loop, or in more simple terms, broadside from the loop. One should try to hang the system from available supports which will enable the antenna to radiate the maximum amount in some favored direction.

The overall length of the wire used in a loop is determined in feet from the formula 1005/f (MHz). Hence, for operation at 7.125 MHz the overall wire length will be 141 feet. The matching transformer, an electrical 1/4 ë of 75-Ù coax cable, can be computed by dividing 246 by the operating frequency in MHz, then multiplying that number by the velocity factor of the cable being used. Thus, foroperation at 7.125 MHz, 246/7.125 MHz = 34.53 feet. If coax with solid polyethylene insulation is used, a velocity factor of 0.66 must be employed. Foam-polyethylene coax has a velocity factor of 0.80. Assuming RG-59 is used, the length of the matching transformer becomes 34.53 (feet) . 0.66 = 22.79 feet, or 22 feet, 91/2 inches. This same loop antenna may be used on the 14 and 21-MHz bands
