80, 40, 20 and 10 M Multiband HF antenna

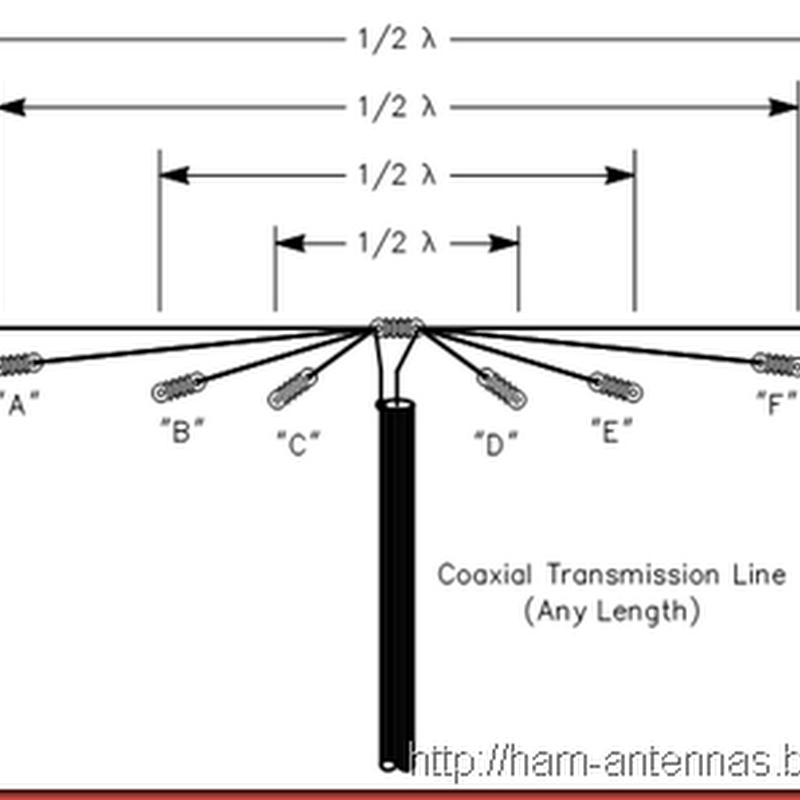

Multiband antenna using paralleled dipoles, all con-nected to a common 50 or 75-Ω coax line. The half-wave dimensions may be either for the centers of the various bands or selected for favorite frequencies in each band. The length of a half wave in feet is 468/frequency in MHz, but because of interaction mamong the various elements, some pruning for resonance may beneeded on each band.
